Technical Documentation of the 2.6cm Holography Receiver 11.7 GHz (P26mm)
| Type | HEMT uncooled |
| Channels | 1 |
| Receiver Noise Temperature | 65K |
| Frequency Range | 11.6965 GHz |
| Bandwidth RF-Filters-fixed | 15 MHz |
| Polarization | LHC |
| Calibration | Noise Diode after 1. Amplifier |
| 1. Oscillator | LO1 = 11,548 MHz (HSM12001 in PM1) |
| 1. IF | 0 - 300 MHz |
Block Diagram

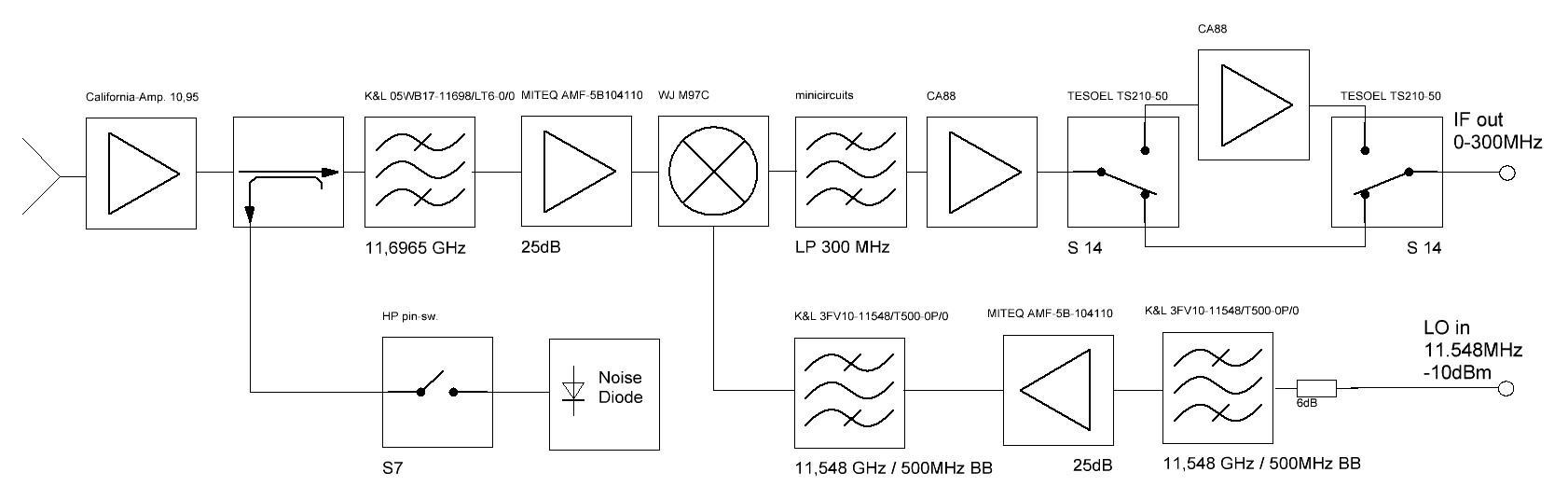

Block Diagram of the P26mm
Comments
This system was constructed particularly for holography measurements of the main dish and is restricted in band width.
This system is part of Primary Focus Multi Frequency Box #1 (PM1).
