Type | HEMT ,Cooled |
Channels | 2 |

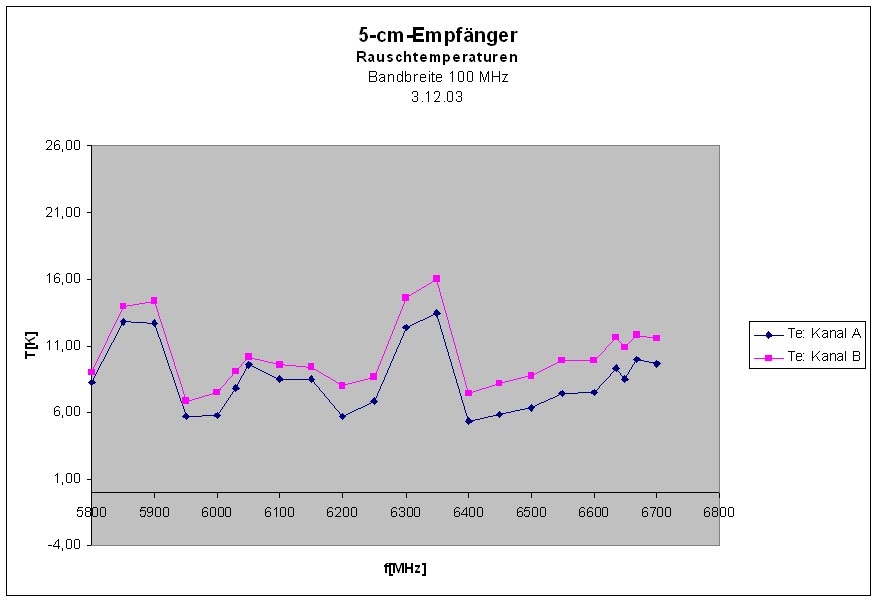

Receiver Noise Temperature | 85K |
Frequency Range | 5.75 - 6.75 GHz |
Bandwidth RF-Filters-fixed | 1 GHz |
Polarization | LHC and RHC |
Calibration | Noise Diode |
feed | Prime Focus Horn |
1. Oscillator | ULO2 526 - 586 MHz (x16) |
1. IF | 2 - 3 GHz |
2. Oscillator | ULO1 1700 MHz (x2) |
2. IF | 500 - 1000 MHz |
This System is obsolete, it is replaced by S45mm, the secondary focus 4-9.3GHz receiver.
